Plastic Laser Welding Machine
Keyword：
Plastic Laser Welding Machine
Automatic Laser Welding Machine(Customize)
- DESCRIPTION
-
- Commodity name: Plastic Laser Welding Machine
Laser (optional 100W, 200W etc.) the single axis of the working table (Z) is equipped with galvanometer welding joint. The three axes of the working table (X, Y, Z) drive the movement of the welding joint, which can achieve the welding of any plane trajectory such as point, circle and straight line, CCD monitoring system can be used to observe the welding process.
Product Description:
System composition:
Laser (optional 100W, 200W etc.) the single axis of the working table (Z) is equipped with galvanometer welding joint. The three axes of the working table (X, Y, Z) drive the movement of the welding joint, which can achieve the welding of any plane trajectory such as point, circle and straight line, CCD monitoring system can be used to observe the welding process.
Motion platform:
Single shaft equipped with galvanometer welding joint (range 110*110 mm, 180*180 mm, 200*200 mm optional) using special welding software can achieve the range of fast welding.
Range of application:

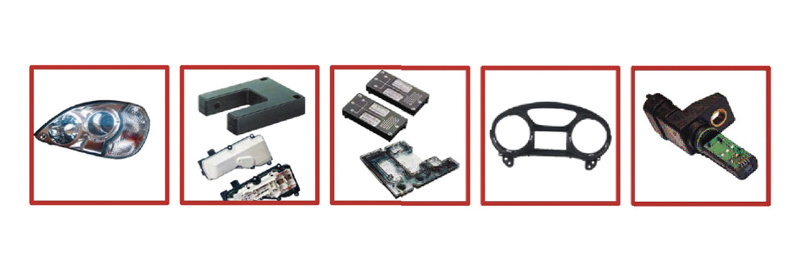

Automotive electronics, medical equipment, military manufacturing, hardware bathroom, IT components and other precision industries.Parameter List:
CX-D100 CX-D200 The power supply Continuous mode averagepower 100W 200W Wavelength 915+10nm 915+10nm Working mode Continuous semiconductor Continuous semiconductor Optical fiber output quantity 1 1 Machine power 800w 1200w Aimed at positioning Red indicator Red indicator The power input AC220V+10% 50/60HZ AC220V+10% 50/60HZ Main engine size 600W*800L*1500H(mm) 600W*800L*1500H(mm) Cooling Cooling mode air cooling air cooling Optical Fiber diameter 200/260um 200/260um Fiber length 5m 5m Other Energy stability <±1% <±1% Operating ambienttemperature 10-30℃ 10-30℃ Samples Show:
Focusing on Precision Laser Welding Equipment and Automation Application Solutions
At present, Innovation Laser has more than 5000 equipments sold, with more than 30 offices settle around the world, meanwhile it’s equipped with a strong after-sales service team to ensure the normal service and equipment maintenance. Innovation Laser is based on a strong technical team, with excellent product quality as the guarantee, market demand as the guidance, serving customers as the purpose, to provide customers with a complete set of laser technology solutions and related supporting facilities.
The Main Products
Laser welding machine series, laser cleaning machine series, laser welding automatic production line and other series of laser equipment with relevant supporting products.
Innovation Laser's product is widely used in aerospace, rail transit, 5G communications, electricity industry, medical equipment, environmental protection machinery, home appliances, kitchenware, electronic circuits, instrumentation, computer manufacturing, mobile phone communication, auto parts, precision equipment, hardware tools, building materials, jewelry, craft gifts, jewelry pharmaceutical packaging and other industries.
